| Vehicle Dimensions (L x W x H) | 8855 mm X 2562 mm X 3290 mm |
| Wheel Base | 4750 mm |
| Floor Height | 400 mm |
| Seating Capacity | 9 High back seats + 20 standees |
| Brakes | Fully ABS with Front Disc & Rear Drum/ Disc |
| Tyres (Front & Rear) | 255/70 R22.5 Radial Tubeless |
| Max Speed | 30 kmph (as per CMVR) |

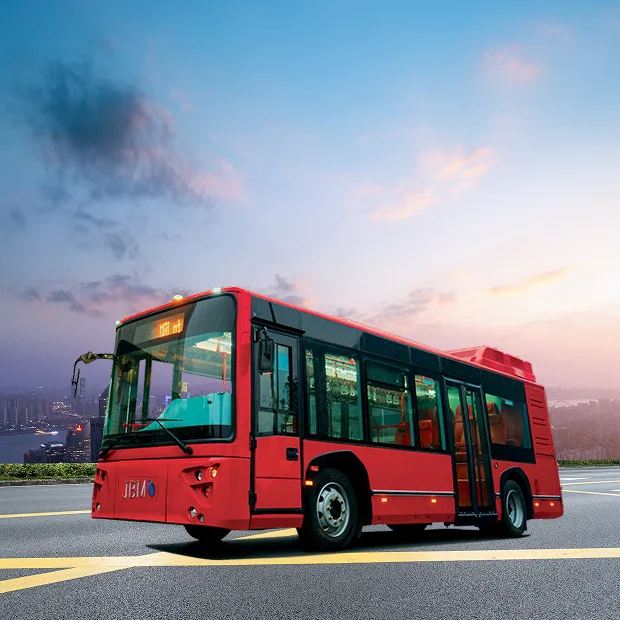

JBM Buses is a leading public transport bus manufacturer India-wide, and the JBM e-SkyLife e9 is its compact 9-metre low-floor electric bus for tarmac, shuttle and feeder services where manoeuvrability and fast boarding matter most.
The e9 is configured with 9 high-back seats plus standing space for 20 standees, giving quick-turnaround shuttle capacity in a short-wheelbase package.
The bus measures 8855 x 2562 x 3290 mm with a 4750 mm wheelbase and a 400 mm low floor height for step-free, rapid boarding.
The e-SkyLife e9 is built for 24 hours of uptime every day, supporting continuous shuttle cycles across airports, campuses and transit interchanges.
It has full ABS braking with front disc and rear drum or disc brakes, running 255/70 R22.5 radial tubeless tyres suited to its compact footprint. Operating speed is referenced at 30 kmph as per CMVR for its intended duty.
A 9-metre low-floor bus turns tightly in constrained apron, campus and narrow-street environments, boards passengers quickly thanks to its 400 mm floor, and uses less energy per kilometre than a full-size bus on routes that do not need 12 metres of capacity — sustainable, safe and advanced electric mobility solutions at the right size.
